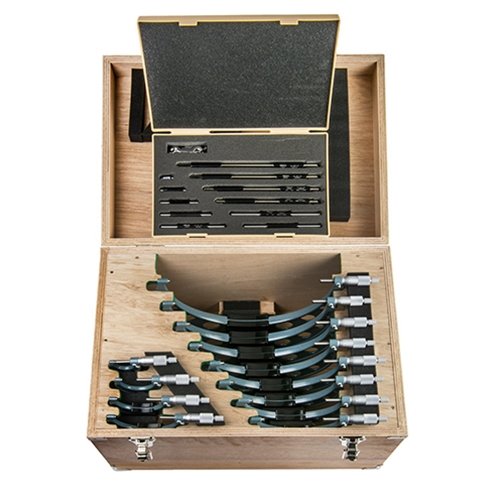

Mitutoyo 103-914-50 | Outside Micrometer Set | Ratchet Stop | 0-300mm Range, 0.01mm Graduation (12 Piece Set) 103-914-50 Mitutoyo Saudi Arabia

Name: Mitutoyo 103-914-50 | Outside Micrometer Set | Ratchet Stop | 0-300mm Range, 0.01mm Graduation (12 Piece Set)
Brand: Mitutoyo
SKU: 103-914-50
Rating: 5 (1 reviews)

Brand :

Stock Status :

In Stock

Brand :

Stock Status :

In Stock

Part Number : 103-914-50

This Mitutoyo vernier 12-piece outside micrometer set includes a ratchet stop on each micrometer for a constant measuring force and exact repetitive readings. Baked-enamel finished frame.Range = 0-25mm, 25-50mm, 50-75mm, 75-100mm, 100-125mm, 125-150mm, 150-175mm, 175-200mm, 200-225mm, 225-250mm, 250-275mm, 275-300mmAccuracy = +/-2µm up to 75mm, +/-3µm up to 150mm, +/- 4µm up to 225mm +/-5µm up to 300mmGraduation = 0.01mmData Output = NoFlatness = 0.6µmMeasuring Faces = Carbide tippedParallelism = (2+R/100)µm, R=max, range (mm) The Part Number is 103-914-50

Specification
Features
Catalog

Specifications

Details

Inch-Metric

Metric

Brand

Mitutoyo

Weight

9300 g

Measuring surfaces

Carbide tipped, micro-lap finish

Measuring spindle

ø6,35 mm, spindle pitch 0,5 mm with spindle lock

Content of Set

All micrometers of 103-913-50 and 103-915-10 in one set, 11 setting standards

Delivered

Including box, setting standard (from 25 mm upward), key

Range

0 - 300 mm

Graduation

0.01 mm
