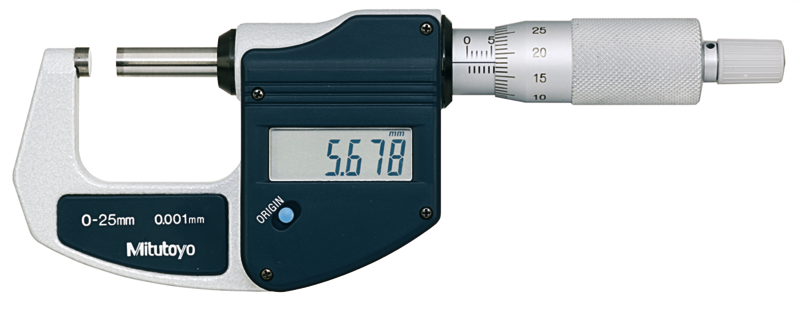

Mitutoyo 293-821 Digital Micrometer 0-25mm, w/o Data Output 293-821 Mitutoyo Saudi Arabia

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : 293-821

This Standard Digimatic Micrometer is an affordable device that offers the following benefits: It is cost-effective with simplified functionality for standard applications. Extraordinary battery life of 2,4 years. Without data output. Constant measuring force The Part Number is 293-821

Specification
Features
Catalog

Specifications

Details

Range

0 - 25 mm

Accuracy

±2 µm

Mass (main unit)

275 g

Measuring surfaces

Carbide-tipped, micro-lap finish

Battery Life

Approx. 2,4 years

Delivered

Including box, key, 1 battery, certificate of inspection

Data Output

Scale

Thimble and sleeve satin chrome finish, ø18 mm

Measuring spindle

ø6.35 mm, spindle pitch 0.5 mm

Inch-Metric

Metric

Flatness

0.3 μm

Digital step

0.001 mm

Parallelism

2 μm

Digital/Analog

Digital

Mitutoyo 293-821 Digital Micrometer 0-25mm, w/o Data Output 293-821 Mitutoyo Saudi Arabia

Part Number : 293-821

This Standard Digimatic Micrometer is an affordable device that offers the following benefits: It is cost-effective with simplified functionality for standard applications. Extraordinary battery life of 2,4 years. Without data output. Constant measuring force The Part Number is 293-821

Mitutoyo 293-821-30 | Digital Micrometer Range 0-25mm | w/o Data Output, Ratchet Stop.

293-821-30

Mitutoyo 293-831-30 | Digital Micrometer | Inch/Metric Range 0 - 1" (0 - 25.4 mm) | w/o Data Output, Ratchet Stop

293-831-30
