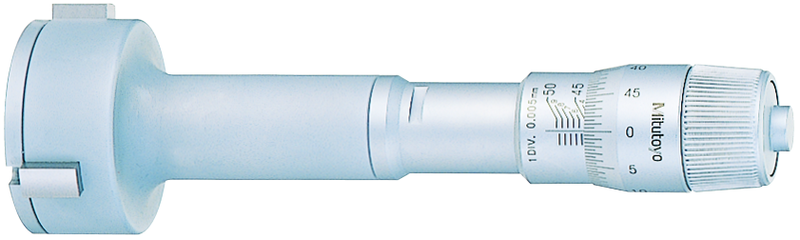

Mitutoyo 368-772, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 75 - 88 mm, Graduation 0.005 mm 368-772 Mitutoyo Saudi Arabia

Brand : Image Brand
Stock Status : Contact us for delivery
Brand : Image Brand
Stock Status : Out of Stock

Part Number : 368-772

Anvils made of hardened tool steel (rather than titanium-coated carbide) make for a more cost-effective tool. • The same precision as the Holtest versions with titanium coating. • A measurement can be taken near to the blind hole's bottom. • Measurement can be made close to the bottom of a blind hole. • Can use an Extension Rod to measure deep holes (optional). • Optional setting rings are provided to correctly set the instrument prior to measurement. The Part Number is 368-772

Quantity:
Provide Calibration Services
  • Specification
  • Features
  • Catalog
Specifications
Details
Range
75 - 88 mm
Mass (main unit)
560 g
Graduation
0.005 mm
Scale type
Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm
Measuring surfaces
hardened steel Taper: hardened steel
Measuring spindle
Spindle pitch 0,5 mm
Measuring method
3-point
Delivered
Including box, key, certificate of inspection
Inch-Metric
Metric
Digital/Analog
Analog
Spindle pitch
Spindle pitch 0,5 mm
Depth without extension
105 mm
